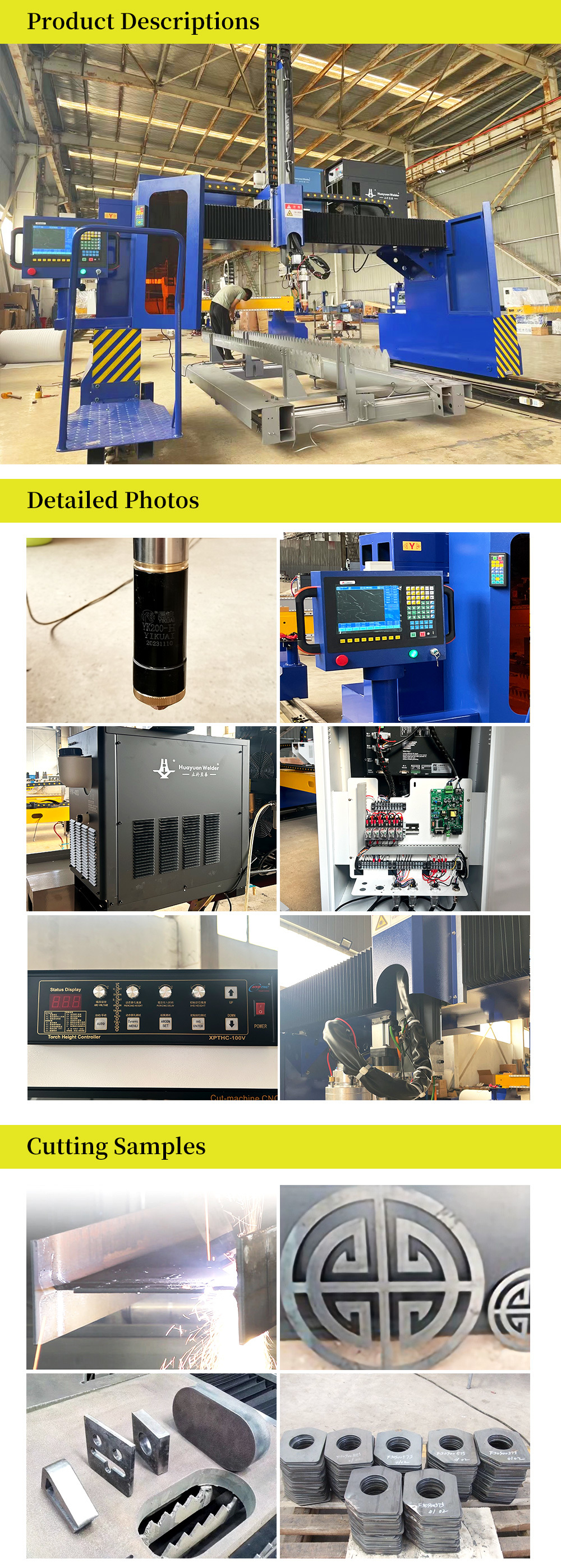

CNC Plasma Cutting Machine For H‑Beam Steel Profile
Application: metal square/rectangular/round pipes and H/I/L/U beams cutting with different shapes
Cutting thickness: 1~50mm for plasma cutting
Diameter/width of workpiece: 60-300mm for KCP-H-300 ; 60-400mm for KCP-H-400, or to be customized
Length of workpiece:6000mm or to be customized
Main features:
1). Multiple axies cutting, with profile end bevel cutting available for seamless welding.
2). Not only laser torch but also flame torch can be equipped, with the cutting thickness up to 200mm, for detail cutting thickness for each cutting mode, please refer to the "Cutting mode and cutting thickness" TABLE below.
3).Automatic ignition when cutting by flame;
4). Choose different patterns directly from drawing library to meet your cutting requirements, or import AUTO CAD patterns from a USD disk to the machine, the machine will automatically cut the patterns.
5). A wide range of materials can be processed, including square/rectangular/round pipes and H/L/U beams.
6). All the cutting parameters can be customized to cut longer or bigger workpieces.
| Model |
KCP-H,H beam 300/400/500/600 |
| Square pipe,round pipe,channel steel, Angle steel |
Range of square pipe, round pipe diameter or profile steel ,steel hight:60 to 300/400/500/600mm |
| Input voltage |
220V±10%,50/60Hz,can be customized |
| Cutting mode |
Plasma |
| Cutting wall thickness |
according to plasma source |
| cutting speed |
According to the thermal cutting process, the recommended plasma: 10-3000mm/min |
| Hand chuck |
Four-claw manualchuck mode(two-linkage self-centering) |
| Plsma cutting thickness |
according to plasma source |
| Machine positioning accuracy |
Repeated positioning accuracy of cutting torch movement is ± 0.5mm / 1000mm;
Bus positioning accuracy is ± 0.5mm |
| Cutting length error |
±1.5mm |
| Motor |
Japan Servo motors |
| key selling point |
High productivity |
| Operative norm |
According to ISO9013-2002 (Hot cutting-Hot cutting classification product size specification and quality tolerance)
JB/T10045.3-1999 (Heat-cut plasma arc cutting mass and dimension deviation) |
| Equipment color |
Blue/white and gray/customized |
